جزئیات محصول:
پرداخت:
|
| رنگ: | نقره | پیوند: | خط تولید مونتاژ اتوماتیک |
|---|---|---|---|
| ماده اصلی: | فولاد ضد زنگ | سرعت مونتاژ: | با سرعت زیاد |
| محدوده مونتاژ: | 1-50 میلی متر | دوره گارانتی: | 1 سال |
| منشاء: | چین | درایو اصلی: | سروو موتور و دیسک ایندکس |
| کنترل کردن: | PLC | رنگ: | رنگ فلزی از جنس استنلس استیل |
| بسته بندی: | مورد چوبی | نرخ کار: | 98 ٪ |
| کارایی: | عالی | منبع تغذیه: | برق |
| برجسته کردن: | 98% Operation Rate Medical Product Assembly Machine,2500-8000pph Production Speed IV Soft Bag Caps and Ports Assembly Machine,High Efficiency Automatic Assembly Production Line,2500-8000pph Production Speed IV Soft Bag Caps and Ports Assembly Machine,High Efficiency Automatic Assembly Production Line |
||
Features

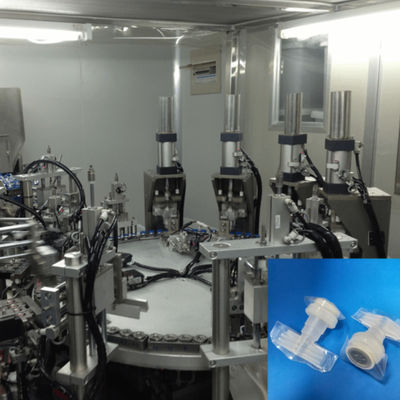

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
