جزئیات محصول:
پرداخت:
|
| کنترل کردن: | PLC | سطح اتوماسیون: | کاملاً خودکار |
|---|---|---|---|
| ضمانت: | 1 سال | ظرفیت مونتاژ: | 4500-12000 در هر ساعت |
| گواهینامه: | ISO 9001 ، ce | نیروی فعال: | حرکات |
| وصل کردن: | دستگاه بسته بندی و دستگاه برچسب زدن | نصب: | نصب و نگهداری آسان است |
| انواع مونتاژ: | کلاه کیف IV | کلاه های مناسب: | سواب بینی |
| حفاظت ایمنی: | دکمه توقف اضطراری | نوع بسته بندی: | مورد چوبی |
| عملگر: | 1 مجموعه/شخص | نوع عملیات: | گردان |
| برجسته کردن: | ISO 9001 Certified IV Bag Ports Assembly Machine,99% Qualified Rate IV Bag Ports Assembly Machine,8000-15000pcs/hr IV Bag Ports Assembly Machine,99% Qualified Rate IV Bag Ports Assembly Machine,8000-15000pcs/hr IV Bag Ports Assembly Machine |
||
Features

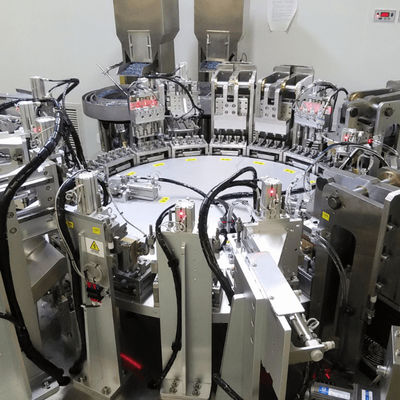

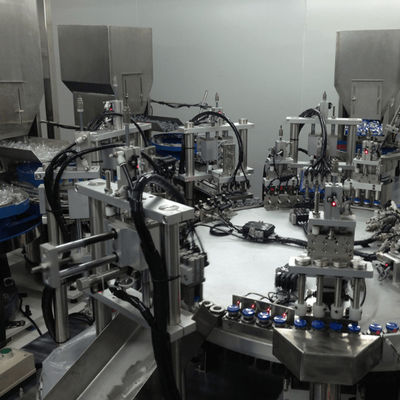

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.
2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.
3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.
4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.
5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.
6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.
7. PLC control system, touch screen HMI operation.
Properties
|
Applicable products |
Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag |
|
Production speed |
8000-15000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
L3500×W3400×H1800(mm) Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
