جزئیات محصول:
پرداخت:
|
| ظرفیت تولید: | 1200-10000 در هر ساعت | نوع عملیات: | گردان |
|---|---|---|---|
| حالت عمل: | صفحه لمسی | نوع: | دستگاه مونتاژ اتوماتیک |
| گواهینامه: | ISO 9001 ، ce | محصول مناسب: | دستگاه مونتاژ خودکار سر پمپ |
| نوع بسته بندی: | مورد چوبی | درایو اصلی: | سروو موتور و دیسک ایندکس |
| سرعت: | عالی | مادی: | فولاد ضد زنگ |
| روش تغذیه: | صفحه ارتعاش | ولتاژ: | 220 ولت |
| نرخ واجد شرایط: | 99 ٪ | نگهدار: | ساده در نگهداری |
| برجسته کردن: | ISO 9001 Certified Medical Product Assembly Machine,220V Voltage IV Soft Bag Caps Welding Machine,99% Qualified Rate Automatic Assembly Machine,220V Voltage IV Soft Bag Caps Welding Machine,99% Qualified Rate Automatic Assembly Machine |
||
Features

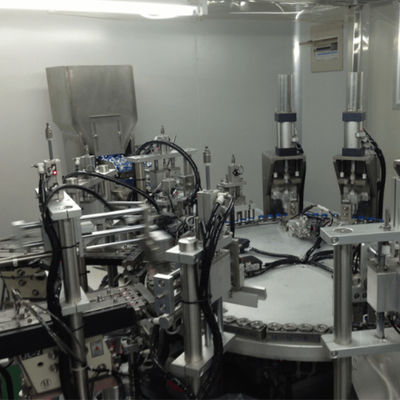

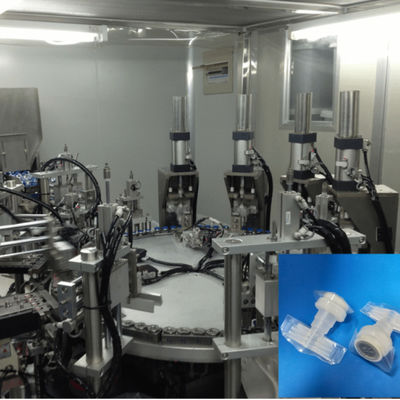

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
