جزئیات محصول:
پرداخت:
|
| نوع بسته بندی: | مورد چوبی | مکانیزم: | خدمتکار |
|---|---|---|---|
| کارایی تولید: | 98 ٪ | نوع عملیات: | قابلمه/مکانیکی |
| درجه اتوماسیون: | خودکار | فشار: | 7 کیلوگرم در متر 3 |
| کاربرد: | صنعت پزشکی | نوع کلاه: | کلیه محصولات مونتاژ پزشکی |
| دقت: | عالی | ضمانت: | 1 سال |
| کنترل کردن: | PLC | عملگر: | تک یا دو |
| برجسته کردن: | Servo Mechanism IV Bag Spike Ports Assembly Machine,8000-15000pcs/hr Injection Ports Assembly Machine,99% Qualified Rate Medical Product Assembly Machine,8000-15000pcs/hr Injection Ports Assembly Machine,99% Qualified Rate Medical Product Assembly Machine |
||
Features

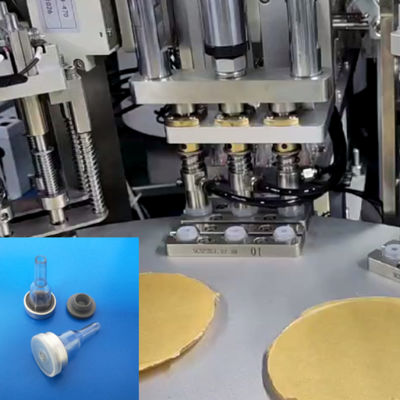

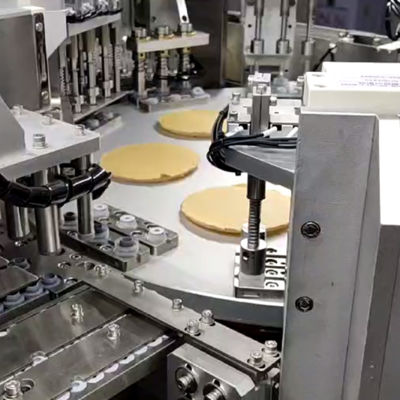

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.
2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.
3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.
4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.
5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.
6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.
7. PLC control system, touch screen HMI operation.
Properties
|
Applicable products |
Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag |
|
Production speed |
8000-15000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
L3500×W3400×H1800(mm) Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
