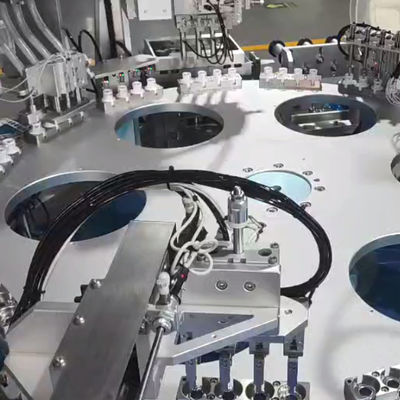

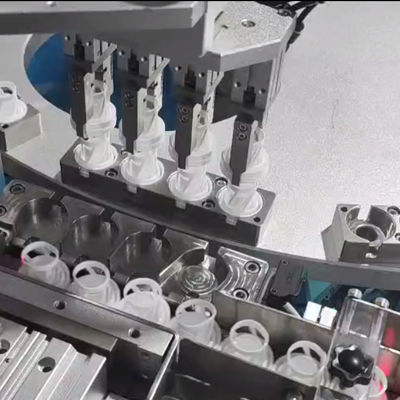

High Efficiency Desiccant Cap Assembly Machine with 0.5-0.8MPa Air Pressure and 1500-8500pcs/hr Production Speed

نام تجاری:	SENCAN
شماره مدل:	SC-TP-789
MOQ:	1 ست
قیمت:	Negotiate price according to actual situation
شرایط پرداخت:	T/T ، L/C
توانایی تامین:	3-20 ست

اطلاعات جزئیات

توضیحات محصول

اطلاعات جزئیات

محل منبع:

چین

گواهی:

CE, ISO9001

ولتاژ:

220 ولت

رنگ محصول:

نقره

اندازه کابل:

سیستم سه فاز پنج سیم

فشار:

0.5-0.8MPa

محصولات مناسب:

مسواک ، تیغ ، شانه و غیره

انواع مونتاژ:

کلاه خشک کن

کلاه های مناسب:

جام یورو

حفاظت ایمنی:

دکمه توقف اضطراری

عمل:

به طور خودکار نیازهای مختلف روزانه را جمع کنید

میزان عملیاتی:

96 ٪

کنترل کردن:

PLC

روش عملیاتی:

کنترل صفحه لمسی

ویژگی:

راندمان بالا، کارکرد آسان

سیستم تشخیص:

سنسور عکاسی

جزئیات بسته بندی:

مورد چوبی

برجسته کردن:

0.5-0.8MPa Desiccant Cap Assembly Machine,96% Silica Gel Filling Machine,1500-8500pcs/hr Sealing Cap Assembly Machine

96% Silica Gel Filling Machine

1500-8500pcs/hr Sealing Cap Assembly Machine

توضیحات محصول

Features

1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.

2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.

3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.

4. Sealing paper waste will be automatically collected to reduce labor of operators.

5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

6. Round shaped caps will be loaded by feeding device which is stable and fast.

7. Each assembling process is well checked, to be sure 100% qualification of qualified products.

8. Equipped with automatic counting function for production statistics.

9. Qualified and unqualified products are released from separate exits.

10. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

11. PLC control system and touch screen, easy operation for operators.

12. Customized according to customer's specifications and capacity requirements.

13. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
