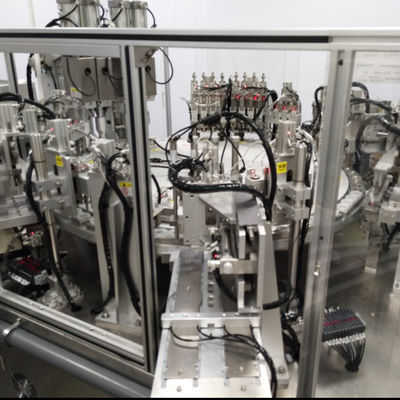

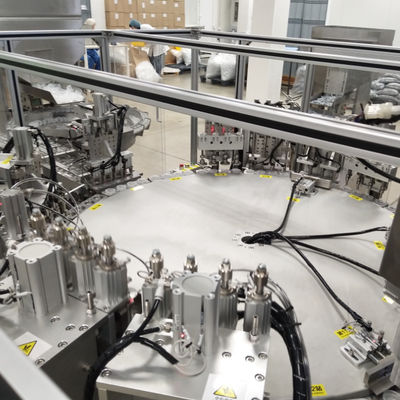

Automatic Euro Cap Assembly Machine 14000-18000pcs/h 50Hz

نام تجاری:	SENCAN
شماره مدل:	SC-TP-782
MOQ:	1 ست
قیمت:	Negotiate the price according actual situation
شرایط پرداخت:	T/T ، L/C
توانایی تامین:	3-20 ست

اطلاعات جزئیات

توضیحات محصول

اطلاعات جزئیات

محل منبع:

چین

گواهی:

CE, ISO9001

ظرفیت:

14000-18000pcs/h

حالت عملیاتی:

خودکار

کارایی تولید:

عالی

وزن:

500 کیلوگرم

عملگر:

تک یا دو

فرکانس محصول:

50 هرتز

نوع مجمع:

خودکار

ظرفیت مونتاژ:

4500-12000 در هر ساعت

محدوده قطر کپس:

10-50 میلی متر

رابط عملیاتی:

صفحه لمسی

مدل:

دستگاه مونتاژ کلاهک

حالت عمل:

خودکار

ویژگی:

راندمان بالا، کارکرد آسان

مکانیزم:

خدمتکار

محصولات قابل اجرا:

کلاه یورو

جزئیات بسته بندی:

مورد چوبی

برجسته کردن:

Automatic Euro Cap Assembly Machine 14000pcs/h,Euro Cap Assembly Machine 50Hz,High-speed Euro Cap Assembly Machine

Euro Cap Assembly Machine 50Hz

High-speed Euro Cap Assembly Machine

توضیحات محصول

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
