جزئیات محصول:
پرداخت:
|
| Features: | High efficiency, precise assembly | Production Capacity: | 5000-15000 pieces per day |
|---|---|---|---|
| Product_Noise_Level: | Low | Power Supply: | AC380V ,50Hz |
| Link: | Automatic assembly production line | Efficiency: | High |
| Qualified Product Rate: | Above 99% | Assembly Speed: | Adjustable |
| Product Type: | Assembly machine | Weight: | About 2850kg |
| Operating Interface: | Touch Screen | Certifications: | CE, ISO 9001 |
| Qualified Rate: | 99% | Product_Type: | Assembly Machine |
| Packaging Type: | Wooden case | ||
| برجسته کردن: | IV bag spike assembly machine,injection port assembly machine,medical assembly machine with warranty,injection port assembly machine,medical assembly machine with warranty |
||
Features

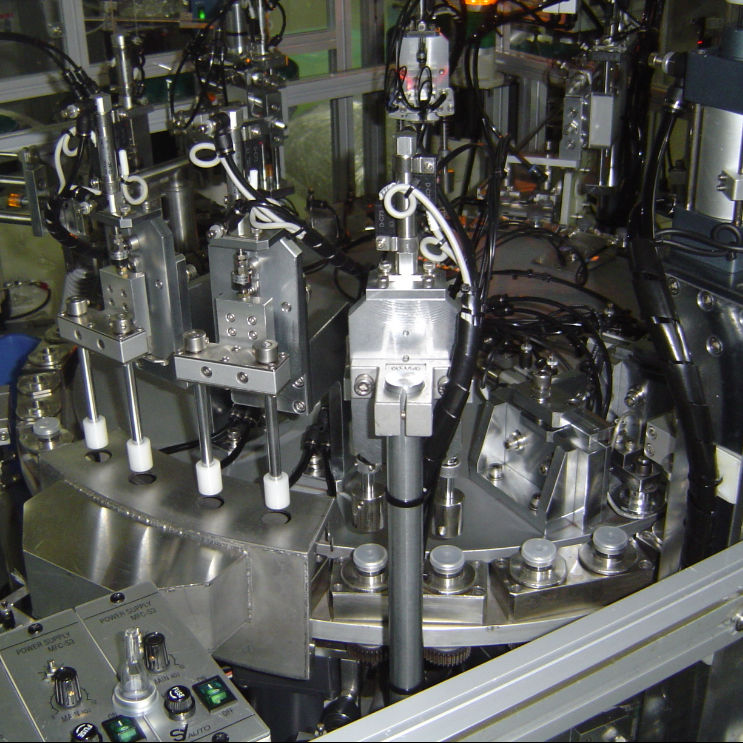

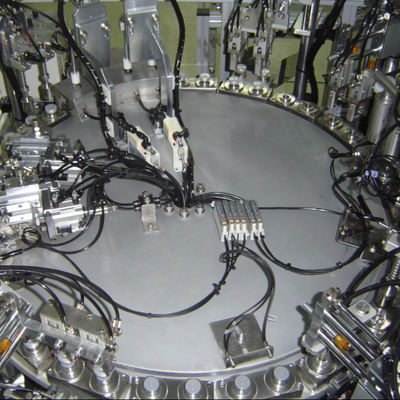

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.
2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.
3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.
4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.
5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.
6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.
7. PLC control system, touch screen HMI operation.
